Diamond Back Rack

Finally it's here! The ALLYGN Diamond Back Rack is a highly versatile, compact carrier that can be used for lighter loads, such as tents, sleeping bags, dry bags, and more. It can be mounted in various ways on almost any type of bike. Taillights can be fitted with the optional ALLYGN Light Mounting Kit, and the ALLYGN Anybolts allow you to install our Micro Panniers, cargo, or bottle cages on the rear stays. When paired with the Gramm Back Diamond Bag, the rack serves as a rigid platform and can replace your classic seat bag.

FEATURES:

• Rack made from strong,
  thin-wall 10 x 0,8mm 25CrMo4 tubing
• All bolts and hardware made from black plated rust-free stainless steel
• Aluminum rack stays
• Multiple mounting options

• 6 × M5 underside accessory mounts
• Optional cage and light mounts
• Internal light cable routing

• Maximum load: 7 kg
• Weight:
  Rack platform: 235 g
  All stays (uncut): 195 g
  Basic Mounting hardware: 75 g
  Anybolt kit (optional): 80 g
  Taillight mounting kit (optional): 15 g

INCLUDED PARTS:

Rear Diamond Rack and the complete basic mounting hardware.
1 x ALLYGN Diamond Back Rack
2 x Long stays, 480 mm
2 x Short stays, 270 mm
5 x Stay-end rubber plugs (1spare)
4 x M6 eyebolts
4 x Barrel washers
4 x M6 washers
4 x M6 nuts
4 x M5 x 16 mm bolts
4 x M5 washers

OPTIONAL HARDWARE:

Allygn Anybolt Kit
6 x M5 eyebolts
6 x Barrel washers
6 x M5 washers
6 x M5 nuts

Allygn Taillight Mounting Kit
2 x Light mount angleplate
2 x M5 x 12 mm bolt
2 x M5 washers
2 x M5 nuts

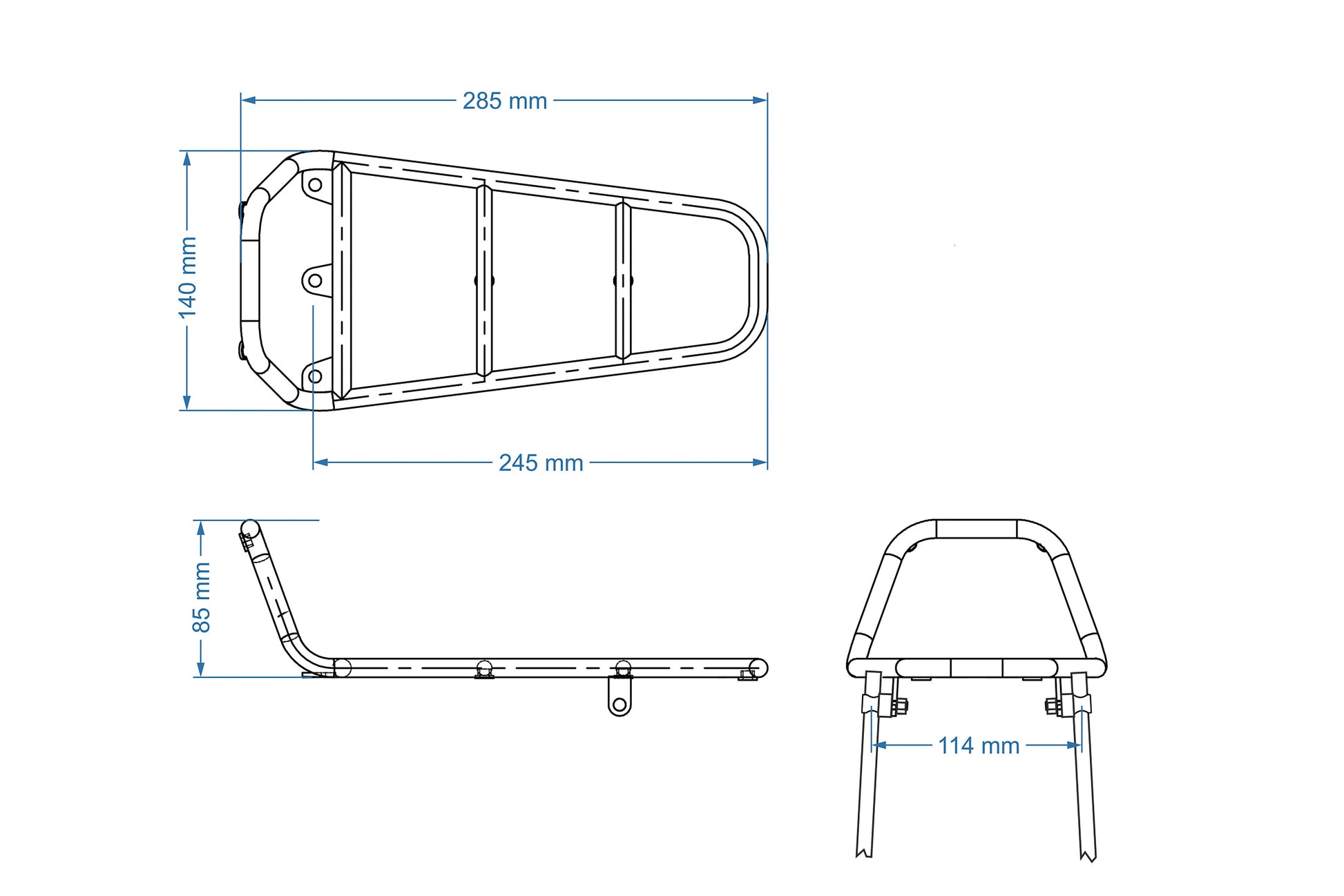

DIMENSIONS:

Length: 285mm
Usable platform length: 245mm
Widest width: 140mm
Stay mounting width center-center: 114mm

Check out the new 3M Helitape for extra rack protection! Other nice accessories are the Fern x Gramm Straps and the Rack Hooks .
